Wind Screen

024550

System Features

Regulation of solar radiation through the choice of the appropriate fabric and the operation of the Wind Screen.

Grazia 65: 2,00 x 1,50 m (width x height)
Dante & Grazia 105: 4,00 x 3,50 m (width x height)
Dante & Grazia 125: 5,00 x 3,50 m (width x height)
Dante 150: 6,00 x 3,50 m (width x height)

Easy installation and maintenance thanks to the optimization of components such as the tester board, coextrusion guide profile or the windshield drawer doormat.

By means of its operation, the desired degree of privacy can be controlled.

Class 5
For dimensions of 5.00 x 3.50 m

It is possible to install it in windows, existing structures, porches and bioclimatic pergolas Saxun.

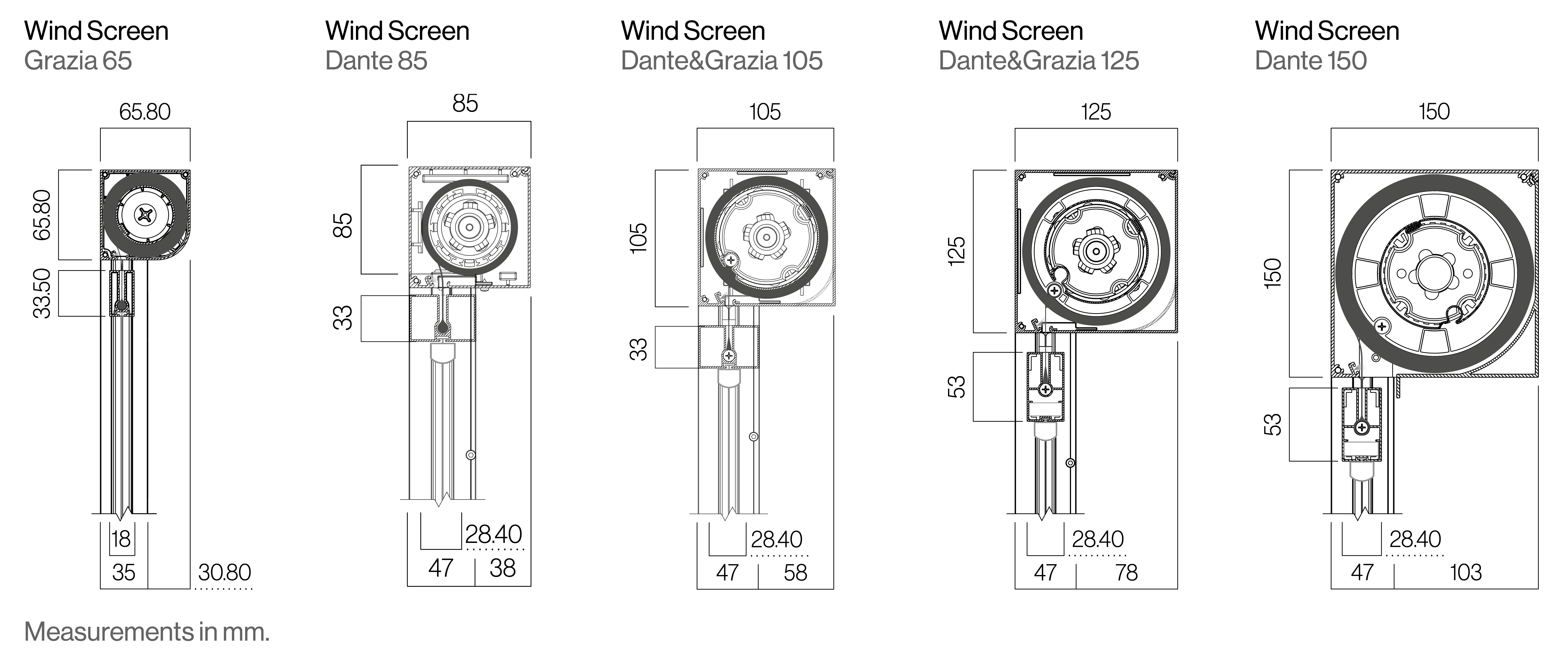

DIMENSIONES MÁXIMAS

  GRAZIA 65 MOTOR/CHAIN DANTE 85 MOTOR DANTE & GRAZIA 105 MOTOR DANTE & GRAZIA 125 MOTOR DANTE 150 MOTOR
  Maximum Minimum Maximum Minimum Maximum Minimum Maximum Minimum Maximum Minimum
Width 2,00 m 0,8 m with motor 3,00 m 0,6 m with motor 4,00 m Mechanical motor 0,73 m 5,00 m Mechanical motor 0,75 m 6,00m Mechanical motor 0,73 m
0,5m with chain Remote motor 0,62 m Remote motor 0,8 m Remote motor 0,79 m Remote motor 0,8 m
Height –   2,50 m – 3,50 m – 3,50 m – 3,50 m –

JOINT SECTION

RWIND RESISTANCE

The test developed in the Giménez Ganga laboratory, gives a result of class 5 (≈ 76 Km/h) according to the EN 13659:2004+A1:2008.

CLASSES V-0 V-1 V-2 V-3 V-4 V-5 V-6
Presión nominal de ensayo p (N/m2) <50 50 70 100 170 270 400
Test safety pressure 1.5 p (N/m2) <50 75 100 150 250 400 600
Nominal speed (Km/h) <33 ≈33 ≈38 ≈46 ≈60 ≈76 ≈92
Safety speed (Km/h) <40 ≈40 ≈46 ≈56 ≈73 ≈92 ≈112

FEATURES

Thanks to its runner guide system the material will not come out of the profile, offering an optimum wind resistance. That way it´s not necessary to roll up the Wind Screen fabric in case of strong wind situation.

The runner is welded to the material, which means that the material and the terminal remain stable within the lateral guides, ensuring functionality of the blind in the most extreme conditions.

Furthermore, the runner prevents from light entrance by the side gaps, thanks to the absence of them. That way, the runner prevents also against bugs entrance.

Dante, with its square drawer, elegant and modern, is an ideal system for installation in building gaps or in Saxun bioclimatic pergolas. Grazia, with its curved drawer, allows installation in spaces with more organic designs.

The box of these Wind Screens incorporates a brush in the rear profile of the box that prevents the material from rubbing against the guide during go up or go down movement. Like this it ensures a longer lifetime of the material.

The terminal of these systems is served in color coordinated with box and guides.

An extruded aluminum profile that provides additional tension to the fabric, and that guarantees the movement of the fabric in all kinds of circumstances.

The fabric is inserted into an inner housing of the terminal that allows the welding of the tissue to be hidden in it, favoring its aesthetics.

In order to compensate for the screen resting on potentially uneven surfaces, the Wind Screen bottom weight integrates a rubber seal of 15 mm in height. This also prevents entry of water.

The window in the lower cover of the guide allows rain water or dew to flow through, which prevents it from accumulating in the base and creating moisture.

Our runner guide profile is manufactured through a process of coextrusion, where the PVC and rubber are formed at the same time.

This bond between both components minimises the noise created by potential vibrations caused by wind.

Thanks to its runner guide system the material will not come out of the profile, offering an optimum wind resistance. That way it´s not necessary to roll up the Wind Screen fabric in case of strong wind situation.

The runner is welded to the material, which means that the material and the terminal remain stable within the lateral guides, ensuring functionality of the blind in the most extreme conditions.

Furthermore, the runner prevents from light entrance by the side gaps, thanks to the absence of them. That way, the runner prevents also against bugs entrance.

Dante, with its square drawer, elegant and modern, is an ideal system for installation in building gaps or in Saxun bioclimatic pergolas. Grazia, with its curved drawer, allows installation in spaces with more organic designs.

The box of these Wind Screens incorporates a brush in the rear profile of the box that prevents the material from rubbing against the guide during go up or go down movement. Like this it ensures a longer lifetime of the material.

The terminal of these systems is served in color coordinated with box and guides.

An extruded aluminum profile that provides additional tension to the fabric, and that guarantees the movement of the fabric in all kinds of circumstances.

The fabric is inserted into an inner housing of the terminal that allows the welding of the tissue to be hidden in it, favoring its aesthetics.

In order to compensate for the screen resting on potentially uneven surfaces, the Wind Screen bottom weight integrates a rubber seal of 15 mm in height. This also prevents entry of water.

The window in the lower cover of the guide allows rain water or dew to flow through, which prevents it from accumulating in the base and creating moisture.

Our runner guide profile is manufactured through a process of coextrusion, where the PVC and rubber are formed at the same time.

This bond between both components minimises the noise created by potential vibrations caused by wind.
